High-Performance 100% 3K Carbon Fiber Reinforced Polymer Sheet - Lightweight CFRP Plate

Περιγραφή προϊόντων

High-Performance 100% 3K CFRP Sheet (Carbon Fiber Reinforced Polymer Sheet)

CFRP Sheets (Carbon Fiber Reinforced Polymer Sheets) are high-performance composite panels designed for demanding structural and industrial applications. These sheets are produced by laminating high-strength carbon fiber fabrics with advanced epoxy or thermoset polymer resins, resulting in a material that combines lightweight properties with exceptional mechanical performance.

The polymer matrix protects the carbon fibers, providing resistance to corrosion, chemicals, moisture, and environmental stress. CFRP sheets maintain superior dimensional stability and low thermal expansion, making them ideal for applications where precision and reliability are critical.

Their combination of high tensile strength, flexural rigidity, and fatigue resistance allows CFRP sheets to replace metals in a wide range of applications, delivering significant weight reduction while maintaining structural integrity. Additionally, CFRP sheets are visually appealing when finished in twill weave or glossy surfaces, which adds both functional and decorative value.

Key Features

• Ultra-high strength and stiffness-to-weight ratio
• Lightweight yet highly durable
• Excellent fatigue and impact resistance
• Corrosion, chemical, and moisture resistant
• Minimal thermal expansion and high dimensional stability

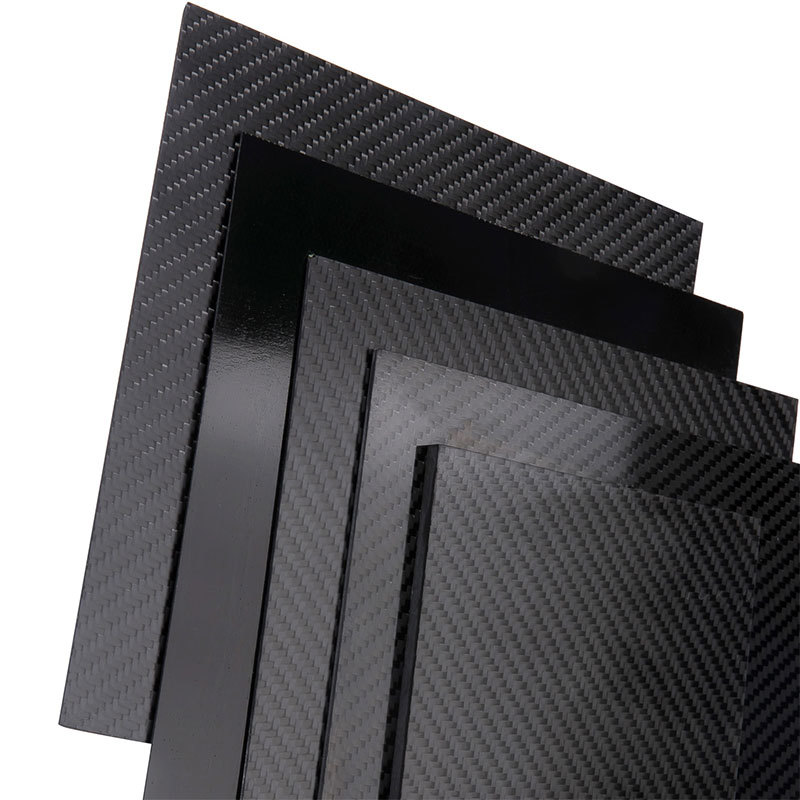

• Matte, glossy, polished, or UV-coated finishes are available
• CNC machining capable: drilling, cutting, slotting, chamfering
• Customizable thickness, size, and fiber orientation for optimized performance

Mechanical Performance

• Density: 1.5 – 1.6 g/cm³
• Tensile Strength: 500 – 1500 MPa
• Flexural Strength: 600 – 1200 MPa
• Elastic Modulus: 50 – 140 GPa
• Thermal Expansion: Near-zero in fiber direction
• Fatigue Resistance: Excellent for repeated mechanical load

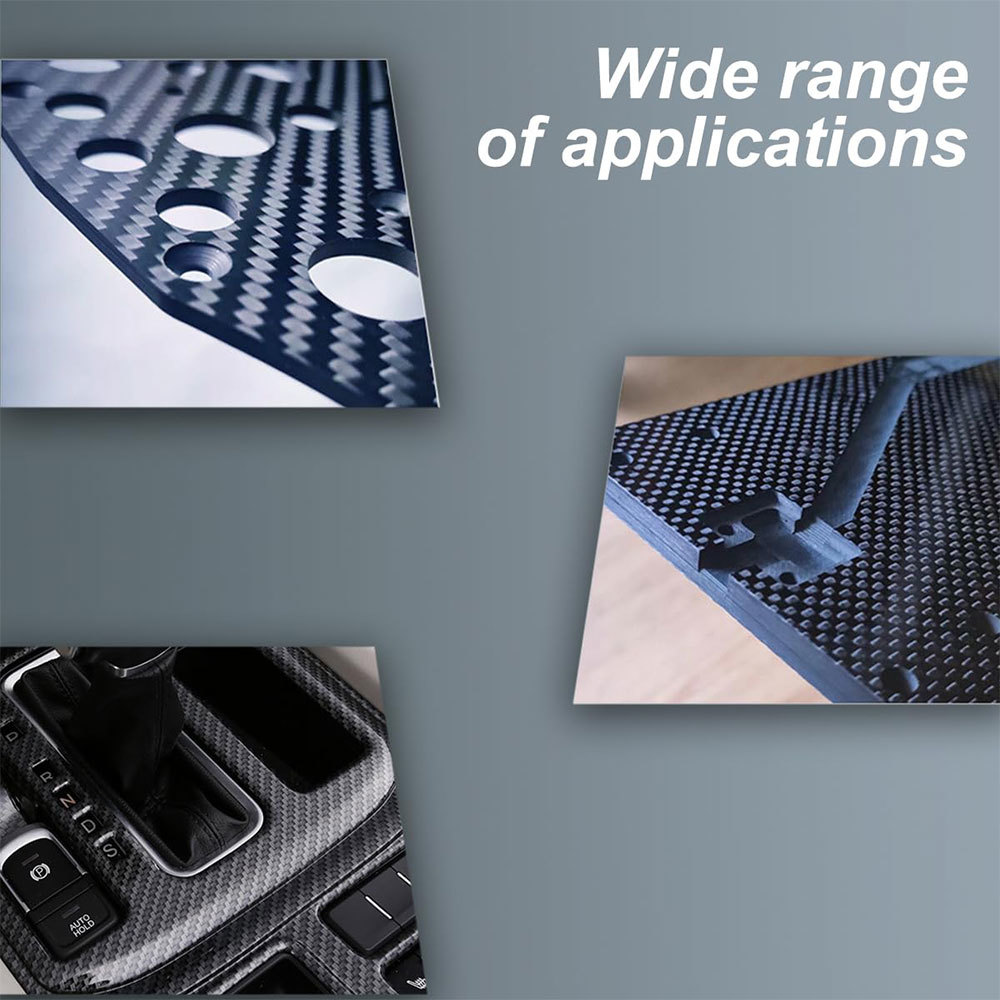

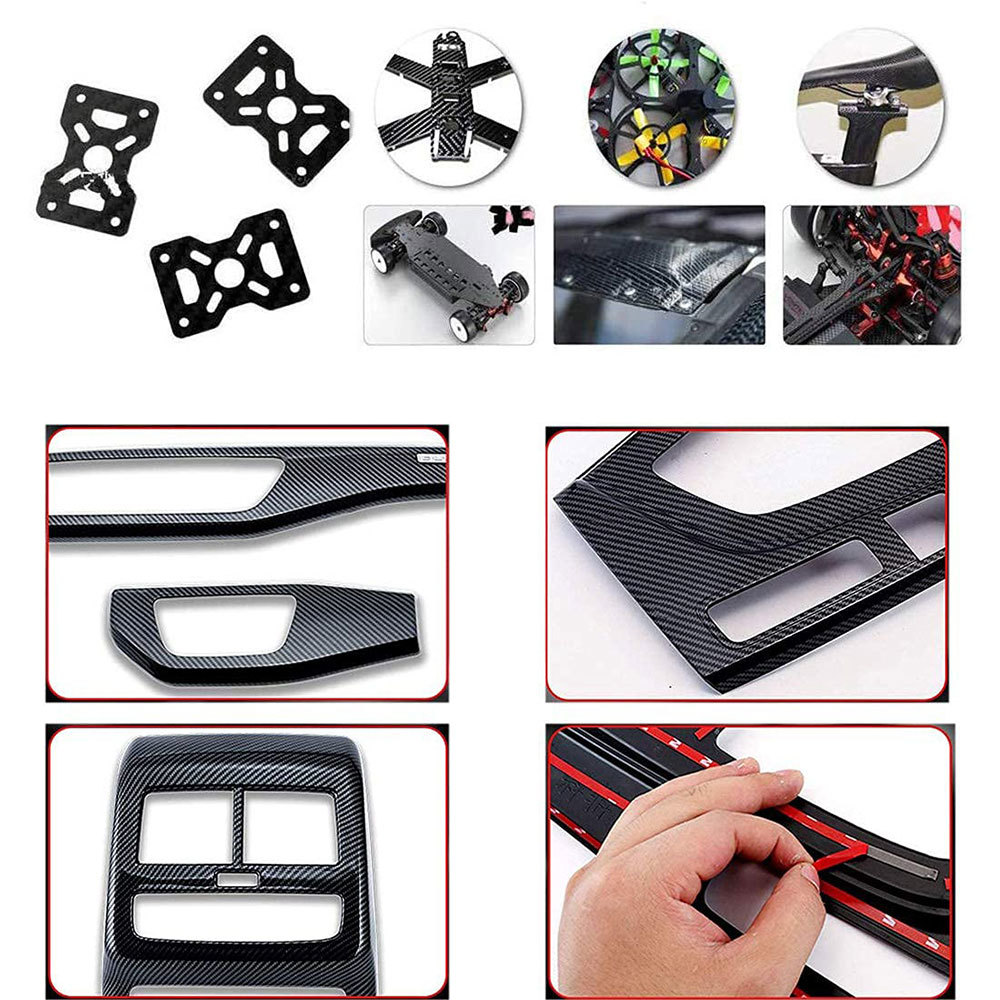

Applications

• Aerospace panels and structural reinforcements
• Automotive lightweight chassis and interior parts
• Industrial machinery base plates and frames
• UAV and drone structures
• Robotics and automation systems
• Sporting goods and high-performance consumer products
• Electronics housings and protective panels

Carbon Fiber Sheet Plate Specification:
