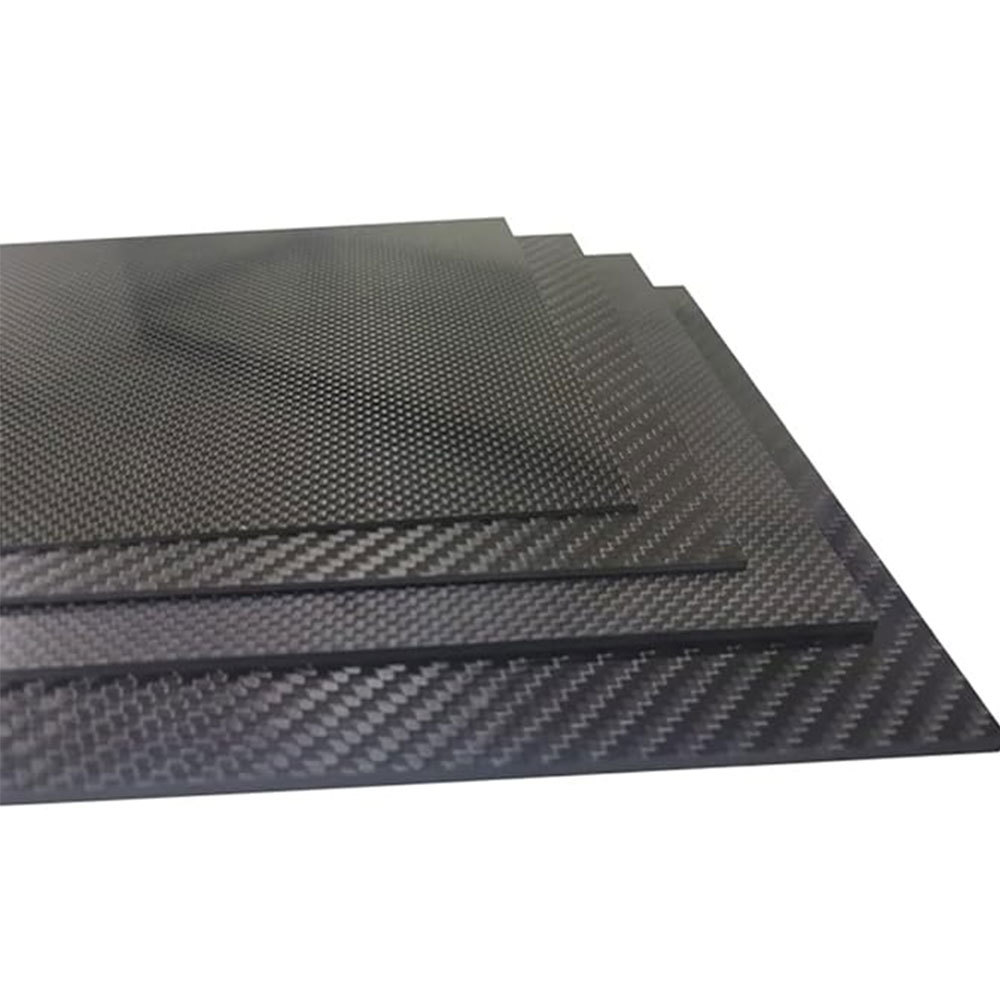

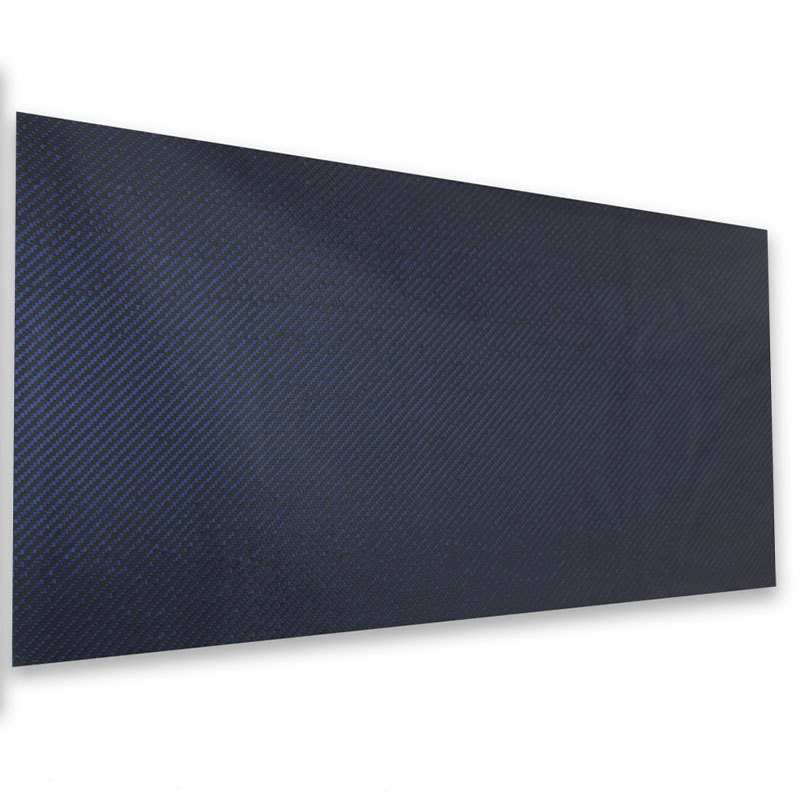

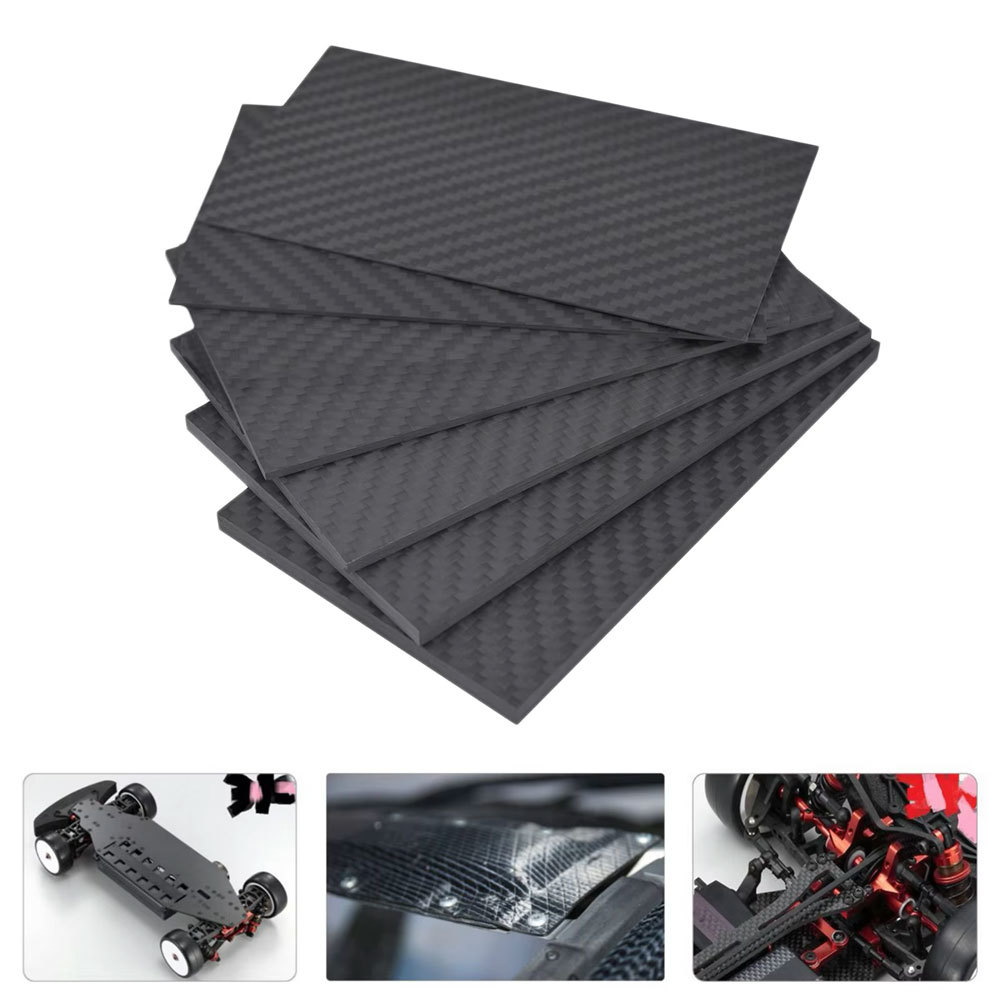

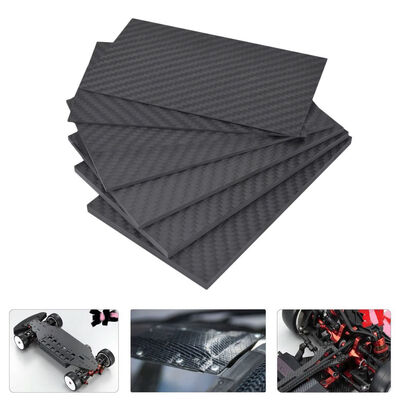

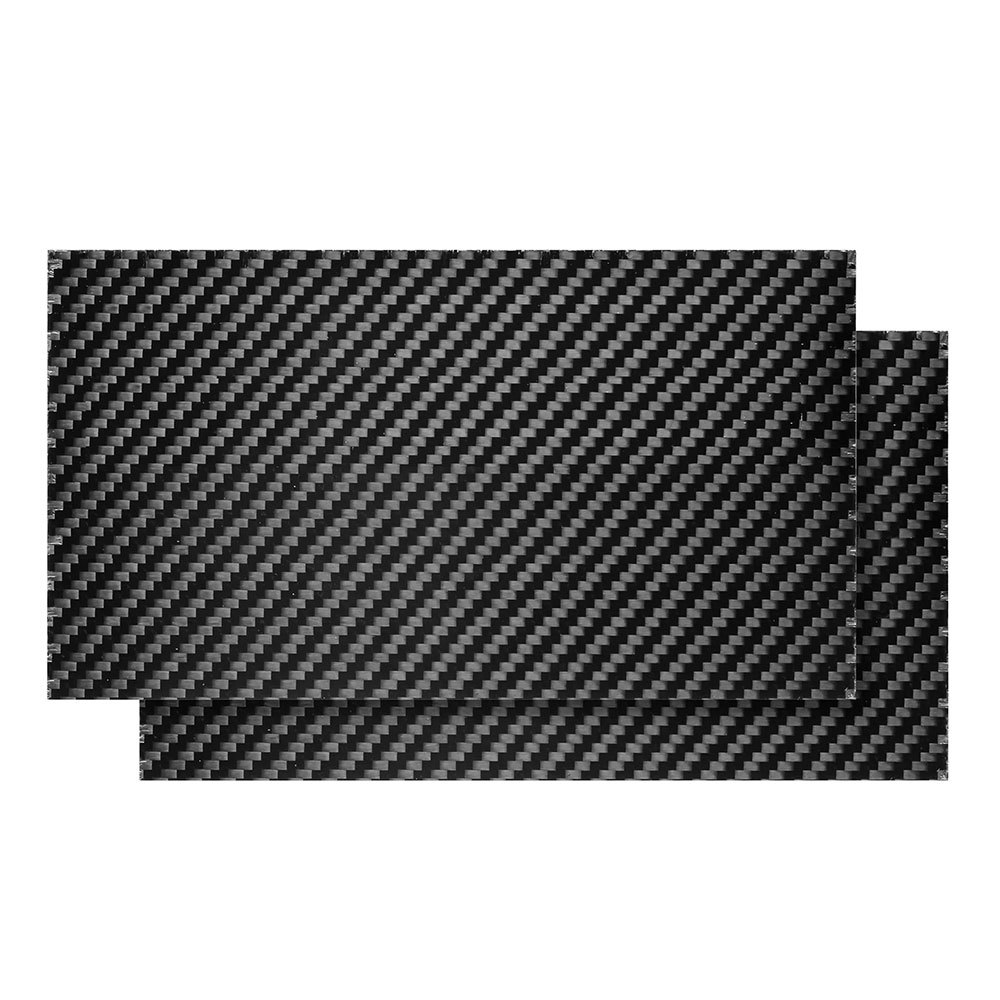

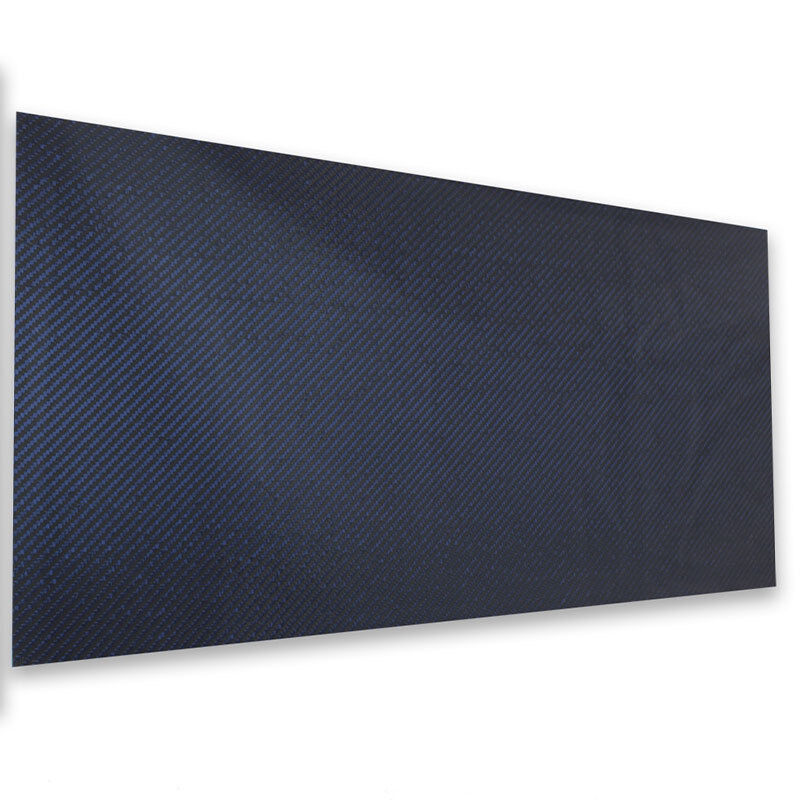

Custom Glossy Carbon Fiber Sheet for Automotive, UAV and Industrial Applications
Our Carbon Fiber Plates using 100% carbon fiber fabric and epoxy resin with the vacuum infusion method. With the vacuum infusion method, ensuring no air remains in the material, one surface of the plate is produced with a perfect gloss and aesthetic appearance while the other surface is produced with a textured and matte finish.
Our Custom Glossy Carbon Fiber Sheets are manufactured from premium carbon fiber fabric and high-performance epoxy resin, offering an exceptional combination of lightweight construction, high strength, and a stunning high-gloss finish. Engineered for demanding automotive, UAV, aerospace, robotics, and industrial applications, these carbon fiber composite panels provide both superior structural performance and a premium appearance.
The glossy surface enhances the distinctive carbon fiber weave pattern, creating a sleek and professional look while maintaining the exceptional mechanical properties that carbon fiber is known for. With outstanding rigidity, dimensional stability, and durability, these carbon fiber sheets are ideal for projects requiring both functionality and visual appeal.
Available in custom sizes, thicknesses, weave patterns, and machining configurations, our glossy carbon fiber sheets can be tailored to meet the exact requirements of OEM manufacturers, engineers, and fabricators.
Designed especially for situations where decorative appearance and high strength are desired, these are decorative and structural engineering plates. You can contact us to have parts machined from Carbon Fiber Plates.
Applications of Carbon Fiber Plate
- General Engineering Robotics Applications
- Aerospace Motorsports
- X-Ray Medical Devices
- Drone Models
Features of Carbon Fiber Plate
- High strength
- Excellent flatness
- Zero pinholes
- Fiber content by weight, 60%
- Fiber content by volume, 50%
Technical Specifications of Carbon Fiber
- Tensile strength, 775 MPa
- Bending strength, 725 MPa
- Flexural modulus, 60 GPa
- Density, 1.5 g/cm3
Carbon Fiber Sheet Plate Specification:
|
Item Name
|
Thickness
|
Length & Width
|
Weave
|
Finish
|
SKU Code
|
N.W.
|
Regular MOQ
|
1st Order MOQ
|
Ship From
|
|
05005060, Full CF Plate, Plain Weave,6K, Matte, TT
|
5
|
500mm*600mm
|
Twill
|
Glossy
|
TG05005060PLTFCF3KTT
|
2.48
|
5
|
1
|
China factory
|
|
04005060, Full CF Plate, Plain Weave,5K, Matte, TT
|
4
|
500mm*600mm
|
Twill
|
Glossy
|
TG04005060PLTFCF3KTT
|
1.94
|
5
|
1
|
China factory
|
|
03005060, Full CF Plate, Plain Weave,4K, Matte, TT
|
3
|
500mm*600mm
|
Twill
|
Glossy
|
TG03005060PLTFCF3KTT
|
1.46
|
5
|
1
|
China factory
|
|
02505060, Full CF Plate, Plain Weave,3K, Matte, TT
|
2.5
|
500mm*600mm
|
Twill
|
Glossy
|
TG02505060PLTFCF3KTT
|
0
|
5
|
1
|
China factory
|
|
02005060, Full CF Plate, Plain Weave,3K, Matte, TT
|
2
|
500mm*600mm
|
Twill
|
Glossy
|
TG02005060PLTFCF3KTT
|
0.96
|
5
|
1
|
China factory
|
|
01505060, Full CF Plate, Plain Weave,3K, Matte, TT
|
1.5
|
500mm*600mm
|
Twill
|
Glossy
|
TG01505060PLTFCF3KTT
|
0.73
|
5
|
1
|
China factory
|
|
01005060, Full CF Plate, Plain Weave,3K, Matte, TT
|
1
|
500mm*600mm
|
Twill
|
Glossy
|
TG01005060PLTFCF3KTT
|
0.53
|
5
|
1
|
China factory
|
